300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption

1
MOQ
US$220-US$320
prezzo
300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome del prodotto: Fendine di gomma di arco
Dimensione: personalizzato
Colore: Nero o personalizzato
Applicazione: Port
Materiale: NR
Caratteristiche: Materiali durevoli
Il logo: Personalizzato
MOQ: 1
Evidenziare:

Corrosion Resistant Dock Fender

,

Long Wear Life Dock Fender

,

Lightweight Dock Fender

Informazioni di base
Place of Origin: China
Marca: Hongruntong Marine
Certificazione: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-ARF05
Termini di pagamento e spedizione
Packaging Details: Wooden Pallet, Wooden Case
Delivery Time: 5-7 Work Days
Payment Terms: T/T, L/C, D/A, , D/P, Western Union, MoneyGram
Supply Ability: 3070 Pcs Per Month
Descrizione di prodotto

300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption



Description

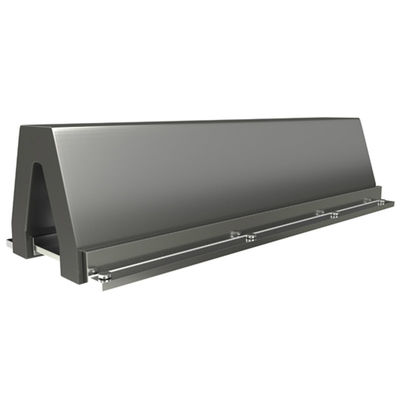

Arch Rubber Fenders are engineered to deliver high energy absorption while minimizing reaction force, protecting both the dock and the vessel during berthing. Their V-shaped structure allows efficient load distribution, making them ideal for medium to large vessels. The fender’s compact size does not compromise its performance, making it a preferred choice for ports requiring strong protection in tight spaces.





Specifications



Product Name

Arch Rubber Fender

Material

Natural rubber, Silicone rubber

Colour

Black, or customized

Surface

Smooth

Size

Height

200-1000mm

Length

1000-3500mm

All sizes can be customized

Physical Properties

Polymer Content

100% virgin

Working temperature

-50℃~240℃

Tensile strength

≥16 mpa

Density

90+/-5 Per 100mm in

Hardness

50-70 (shore A)

Elongation

≥400%

Features

1. Through high temperature resistant

2. Excellent tear resistant, oil resistant, aging resistant

3. Resistant to industrial acid & alkali and good elastic

4. Built as per PIANC2002

Application

Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge



Model

W

B

F

C

H

[mm]

[mm]

[mm]

[mm]

[mm]

HM-ARF200H

400

320

145

128

200

HM-ARF250H

500

410

175

160

250

HM-ARF300H

600

490

225

196

300

HM-ARF400H

800

670

300

260

400

HM-ARF500H

1000

840

375

325

500

HM-ARF600H

1200

1010

450

390

600

HM-ARF800H

1600

1340

600

520

800

HM-ARF1000H

2000

1680

750

650

1000



300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption 0





Features



High Energy Absorption
The V-type arch design allows the fender to absorb large amounts of impact energy, ensuring safe and smooth berthing for vessels of various sizes.



Low Reaction Force
Optimized geometry provides high energy absorption with minimal stress transmitted to the quay wall, preventing structural damage to both dock and vessel.



Durable Rubber Compound
Made from high-grade natural and synthetic rubber blends, offering excellent resistance to UV, ozone, saltwater, and extreme weather conditions.



Long Service Life
Designed for heavy-duty marine environments, these fenders can function effectively for over 10–20 years with minimal performance degradation.





Applications



► Mixed-use ports



Industrial wharfs



Tourism piers



Service docks




Advantages



Comprehensive Documentation Support
We provide full documentation including material certificates, test reports, installation manuals, and compliance certifications.



Competitive Pricing Without Compromising Quality
Optimized production efficiency and long-term supplier partnerships help us keep costs low while maintaining high standards.



Continuous R&D Investment
We invest in new materials and structural designs to improve performance, reduce weight, and extend product life.



Excellent Reputation in the Global Marine Industry
Recognized as a trusted fender supplier by international port authorities, shipyards, EPC contractors, and marine engineers.





FAQ



1. What is an Arch Rubber Fender?
An Arch Rubber Fender is a V-shaped marine fender designed to absorb impact energy during vessel berthing, protecting both ships and docks.



2. What are the typical applications of Arch Rubber Fenders?
They are commonly used in ports, docks, shipyards, ferry terminals, and offshore platforms for vessel protection.



3. How does the arch shape benefit fender performance?
The arch or V-shape provides high energy absorption with low reaction force, distributing loads evenly to reduce damage.



4. What sizes are available for Arch Rubber Fenders?
Standard heights range from 200mm to 1200mm or more; lengths and thicknesses can be customized per project requirements.



300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption 1300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption 2300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption 3300h Dock Fender Lightweight Long Wear Life Corrosion Resistant High Energy Absorption 4
