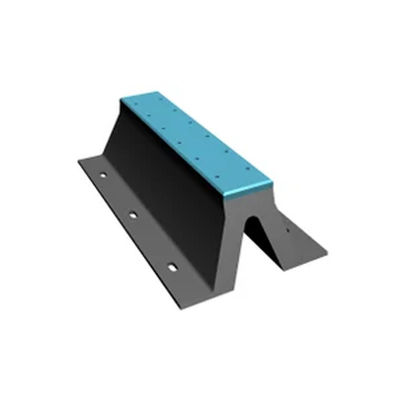

Name: Corrosion Resistant Rubber Arch Fender 700h Fast Installation Reinforced Body Low Maintenance
Brand: Hongruntong Marine Co., Ltd.
SKU: HM-ARF08
Price: 1,304.00 USD
Availability: InStock

Corrosion Resistant Rubber Arch Fender 700h Fast Installation Reinforced Body Low Maintenance

MOQ

US$8 - US$2600

prezzo

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Nome del prodotto: Fendine di gomma di arco

Colore: Nero o personalizzato

Materiale: NR

Caratteristiche: Materiali durevoli

Garanzia: 36 mesi

Applicazione: Port

Il logo: Personalizzato

Utilizzatori: protegga la barca

Dimensione: Personalizzato

MOQ: 1

Evidenziare:

700h Arch Fender

Reinforced Body Arch Fender

Low Maintenance Arch Fender

Informazioni di base

Place of Origin: China

Marca: Hongruntong Marine

Certificazione: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Model Number: HM-ARF08

Termini di pagamento e spedizione

Packaging Details: Pallet, Wooden Box

Delivery Time: 5-7 Work Days

Payment Terms: T/T, L/C, D/A, , D/P, Western Union, MoneyGram

Supply Ability: 2540 Pcs Per Month

Galleria

Corrosion Resistant Rubber Arch Fender 700h Fast Installation Reinforced Body Low Maintenance

Descrizione di prodotto

Arch Fender 700h Fast Installation Reinforced Body Low Maintenance Corrosion Resistant Rubber

Description

Arch Rubber Fenders feature a simple, modular design that enables fast installation using standard bolts and fixing frames. This ease of setup reduces downtime during port construction or refurbishment. The lightweight but robust profile also allows quick replacement, helping marine operations remain efficient and uninterrupted during maintenance.

Specifications

Product Name	Arch Rubber Fender
Material	Natural rubber, Silicone rubber
Colour	Black, or customized
Surface	Smooth
Size	Height	200-1000mm
	Length	1000-3500mm
	All sizes can be customized
Physical Properties	Polymer Content	100% virgin
	Working temperature	-50℃~240℃
	Tensile strength	≥16 mpa
	Density	90+/-5 Per 100mm in
	Hardness	50-70 (shore A)
	Elongation	≥400%
Features	1. Through high temperature resistant
	2. Excellent tear resistant, oil resistant, aging resistant
	3. Resistant to industrial acid & alkali and good elastic
	4. Built as per PIANC2002
Application	Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge

Model	W	B	F	C	H
Model	[mm]	[mm]	[mm]	[mm]	[mm]
HM-ARF200H	400	320	145	128	200
HM-ARF250H	500	410	175	160	250
HM-ARF300H	600	490	225	196	300
HM-ARF400H	800	670	300	260	400
HM-ARF500H	1000	840	375	325	500
HM-ARF600H	1200	1010	450	390	600
HM-ARF800H	1600	1340	600	520	800
HM-ARF1000H	2000	1680	750	650	1000

Corrosion Resistant Rubber Arch Fender 700h Fast Installation Reinforced Body Low Maintenance 0

Features

Stable Performance Under Load
Maintains consistent compression and recovery behavior, ensuring reliable protection even under repeated or extreme loads.

Customizable Dimensions and Performance Ratings
Can be tailored in length, height, rubber hardness, and mounting pattern to suit specific berthing requirements.

Easy and Fast Installation
Bolt-on design requires no welding or specialized tools, reducing construction time and installation labor.

Simple Replacement and Retrofit
Modular structure allows quick replacement of worn fenders or upgrading existing systems with minimal dock modifications.

Applications

► River docks

► Old quay retrofits

► Floating pontoons

► Military docks

Advantages

Export Experience to 50+ Countries
We serve customers in Asia, Europe, the Middle East, Africa, and South America with proven global reliability.

Fully Traceable Manufacturing Process
Each product is traceable from raw material to final inspection, ensuring full transparency for technical audits or marine authorities.

On Time Delivery Assurance
Strong supply chain management and internal logistics allow for accurate lead time and dependable delivery schedules.

Professional Technical Support Team
Our engineers provide layout design, installation guidance, and technical consulting before and after purchase.

FAQ

1. What maintenance do Arch Rubber Fenders require?
Routine inspections for surface damage, cleaning, and checking mounting bolts are usually sufficient.

2. Can Arch Rubber Fenders be customized?
Yes, size, rubber hardness, and mounting options can be tailored to specific berthing needs.

3. How do Arch Rubber Fenders perform under extreme weather?
Their rubber compounds are formulated to resist UV degradation, ozone, saltwater corrosion, and temperature fluctuations.

4. What is the reaction force, and why is it important?
Reaction force is the load transferred to the dock during vessel impact; low reaction force protects quay structures from damage.

Corrosion Resistant Rubber Arch Fender 700h Fast Installation Reinforced Body Low Maintenance 1
