Name: 1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound
Brand: Hongruntong Marine Co., Ltd.
SKU: HM-PRF49
Price: 202.00 USD
Availability: InStock

1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound

MOQ

USD25-USD380

prezzo

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

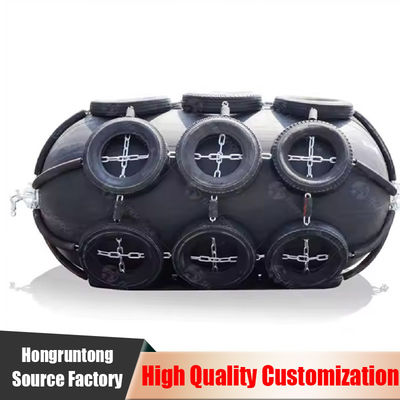

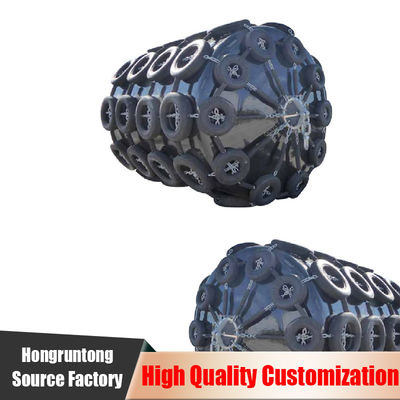

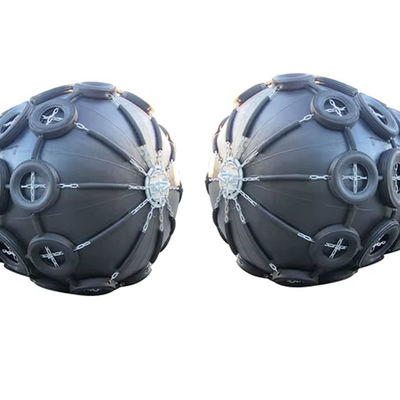

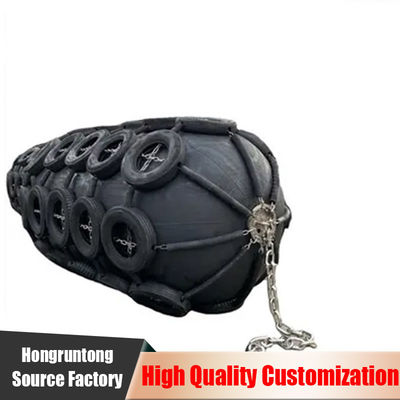

Product Name: Pneumatic Rubber Fender

Material: NR

Feature: Environmentally Friendly Materials

Usage: Protect Boat

Accessories: Tyres, Steel Chain, Hang Ring

Color: Black or Customized

Standard: ISO17357-1:2014, PIANC2002

Size: Customized

Informazioni di base

Place of Origin: China

Marca: Hongruntong Marine

Certificazione: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Model Number: HM-PRF49

Termini di pagamento e spedizione

Packaging Details: Pallet, Wooden Box

Delivery Time: 10-20 Days

Payment Terms: T/T, L/C, D/A, , D/P, Western Union, MoneyGram

Supply Ability: 1040 Pcs/Month

Galleria

1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound

Descrizione di prodotto

1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound

Description

Specially engineered for supertankers, LNG carriers, and offshore platforms, our 4.0m–6.0m ultra-large pneumatic fenders deliver 2000–5000kJ energy absorption capacity. The 8-ply reinforced construction with steel cord reinforcement ensures maximum durability against extreme impacts in harsh marine environments.

Specifications

Place of Origin	China
Brand Name	Pneumatic Rubber Fender
Material	Natural Rubber
Color	Black
Application	In Ports with Extreme Tidal Variations Ship-to-Ship Lightering Operations Oil Gas (Typically Fsru) Temporary Berthing
Feature	Heat Resistance
Sample	Usually Free
Production Method	Moulding
Temperature	-40℃~300℃
Packing	Pallets
Lead time	7-14 days

Diameter x Length [mm]	50kPa Performance Data			80kPa Performance Data
Diameter x Length [mm]	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm
1000 x 1500	122	182	32	160	239	45
1000 x 2000	132	257	45	174	338	63
1200 x 2000	126	297	63	166	390	88
1350 x 2500	130	427	102	170	561	142
1500 x 3000	153	579	153	174	761	214
1700 x 3000	128	639	191	168	840	267
2000 x 3500	128	875	308	168	1150	430
2500 x 4000	137	1381	663	180	1815	925
2500 x 5500	148	2019	943	195	2653	1317
3300 x 4500	130	1884	1175	171	2476	1640
3300 x 6500	146	3015	1814	191	3961	2532
3300 x 10600	158	5257	3067	208	6907	4281
4500 x 9000	146	5747	4752	192	7551	6633
* Other size can be produced follow client's requirements.

1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound 0

Features

Multi Layer Reinforcement

6-ply rubber construction with high-tensile steel cord reinforcement (minimum tensile strength 2500N/mm) and vulcanized joint seams exceeding 90% of base material strength.

Advanced Material Science

Proprietary rubber compound (72±5 Shore A) incorporating anti-oxidants (6PPD) and UV stabilizers for <5% property degradation after 1000h accelerated weathering (ISO 4892-2).

Engineered Energy Absorption

Progressive compression characteristics achieving 65-75% deflection at rated capacity (3000kJ max) with controlled rebound velocity <0.8m/s.

Precision Pressure Management

Integrated dual-stage relief valves maintain operating pressure (0.8-1.2MPa) with ±2% accuracy, preventing over-compression damage.

Applications

• Offshore oil & gas loading terminals

• Arctic port infrastructure

• Heavy-lift vessel operations

• Coastal breakwater protection

Advantages

Space Saving Design

3:1 aspect ratio delivers full performance in 30% less space.

High Pressure Operation

1.5MPa (217psi) rating maximizes energy density.

Rapid Deployment

Quick-connect inflation achieves full pressure in <8 minutes.

Low Profile Mounting

Flush brackets reduce protrusion by 45% versus standard fenders.

FAQ

1. Q1: What’s the smallest available size?
A: 0.6m diameter × 1.8m length (custom shorter lengths possible).

2. Q2: Can they replace traditional cylindrical fenders?
A: Yes, with equivalent energy absorption in tighter spaces.

3. Q3: How are they secured in narrow docks?
A: Low-profile side mounts or embedded rail systems available.

4. Q4: What’s the weight savings?
A: 20–25% lighter than same-capacity standard fenders.

1.0m Baby Fenders Super Elastic Anti Corrosion 10+ Years Lifespan Excellent Rebound 1
